MS600-L Laser Methane Remote Detector ETLM-50 Ultra Long Battery Life for Coal Gas/Biogas/Natural Gas Quick & Precise

Place of Origin China
브랜드 이름 Zetron
인증 CE, ISO13485, ISO9001,CE, Atex, SIL3
Model Number MS600-L
Minimum Order Quantity 1
가격 $100-$5000
Packaging Details paper carton
Delivery Time 3-7 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000 set/month

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
Product Name Laser Methane Remote Detector Model Number MS600-L
Protection class IP66 Detection Range 0-100000ppm.m
Dimension 200mm (L) * 54mm (W) * 54mm (H) Weight 350g
Explosion-Proof Rating Ex ib IIC T4 Gb Laser Class CLASS I
Indicator Laser CLASS III R
메시지를 남겨주세요
제품 설명

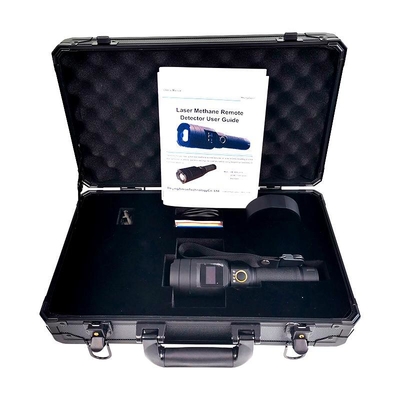

MS600-L Remote Laser Methane Gas Detector



OVERVIEW



MS600-L Remote Laser Methane Gas Detector is an innovative, high-precision laser remote sensing device designed for long-distance detection of methane gas in environments that are otherwise difficult to access. The device is equipped with a Class I laser for detection and a Class III R indicator laser, providing fast and accurate readings. With a detection range of 30 to 50 meters, it ensures highly reliable monitoring of methane leakage, especially in hard-to-reach areas.

MS600-L Laser Methane Remote Detector ETLM-50 Ultra Long Battery Life for Coal Gas/Biogas/Natural Gas Quick & Precise 0



FEATURES



  • Durable All-Metal Body: The device is made from 7075 aircraft-grade aluminum and is treated with hard anodized coating for enhanced durability, resistance to wear, and shockproof performance.
  • APP Connectivity: Supports Bluetooth connectivity with an app for enhanced functionality, including data exchange and remote control.
  • Lightweight and Portable: Weighing only 350g, it is easy to carry and ideal for use in the field.
  • Fast Detection Speed: Can measure 200 times per second with a quick response time of 0.03 seconds.



APPLICATION



The detector is a versatile tool for detecting methane leaks across various industries. In petroleum and petrochemical sectors, it monitors long-distance pipelines and storage areas, ensuring safety in high-risk environments. For natural gas operations, it detects leaks in LNG storage and offshore pipelines, maintaining safe infrastructure. In heating and power generation, it helps with early leak detection at gas stations. The device is also crucial for emergency management, providing real-time data for firefighting, hazardous chemical transport, and gas vehicle monitoring. In the coal industry, it ensures underground worker safety by monitoring methane concentrations in mining areas.



PARAMETER



Size 220*54*54mm Material 7075 aviation aluminum alloy
Weight 350g Protection Leve IP66
Detection Gas Methane Working Time Min 20 hours
Response Time 0.03S Accurancy ±10%
Detection Range 0-50000ppm.m Resolution 3ppm.m
Detection Distance 30-50m Laser Class Detection Laser:Class I
Sensitivity 3ppm.m   Indicate Laser:Class IIIR
Working Pressure 40-160kpa Working Voltage 5V
Working Humidity 0-98%RH Working Current 2A





MS600-L Laser Methane Remote Detector ETLM-50 Ultra Long Battery Life for Coal Gas/Biogas/Natural Gas Quick & Precise 1MS600-L Laser Methane Remote Detector ETLM-50 Ultra Long Battery Life for Coal Gas/Biogas/Natural Gas Quick & Precise 2MS600-L Laser Methane Remote Detector ETLM-50 Ultra Long Battery Life for Coal Gas/Biogas/Natural Gas Quick & Precise 3
