Zetron MS104K Portable Four-in-One Gas Detector with Bilingual Support, Trend Graphs, and Long Battery Life, High Accuracy for Municipal Engineering and Gas Industry
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Product Name | 4 In 1 Gas Detector | Type | Portable |
|---|---|---|---|
| Gas Detected | Multiple gases | Ip Rating | IP-66 |
| Detection Range | Depends on the sensor configuration | Dimensions | Depends on the model |
| Detecting Gas | Combustible Gas/H2S/CO/O2/H2S/H2 | Ambient Temperature | -20℃ ~ + 60℃ |
| Accuracy | ±3% (at calibration point) | Function | PID TVOC air detector |
| Precision | ≤±3%FS |
제품 설명

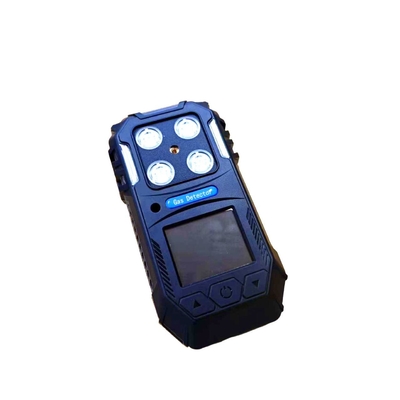

MS104K Portable 4-1 Gas Detector
OVERVIEW
The MS104K is a high-performance portable gas detector designed for multi-gas monitoring, capable of detecting combustible gases, oxygen, and toxic gases with customizable sensors. Using advanced electrochemical and catalytic combustion technologies (with an optional NDIR infrared sensor), it provides quick, accurate readings. The device features a TFT color LCD for easy operation, with bilingual support (English and Chinese), and includes triple alarm modes (audible, visual, and vibration) for immediate alerts. Constructed from durable PC+TPU anti-static materials and fitted with a stainless steel back clip, it is built to withstand tough industrial environments. With an IP65 rating and Ex ia IIC T4 Ga explosion-proof certification, it ensures safe use in hazardous conditions. The MS104K also stores up to 1000 alarm records, displays trend graphs, and offers a Type-C charging port with a battery life of over 16 hours. Its ergonomic biomimetic owl design combines comfort and aesthetics, making it an ideal choice for industries like petroleum, chemicals, and metallurgy, providing reliable gas safety monitoring and protection.
FEATURES
-
Gas Detection: Detects combustible gases, oxygen, and toxic gases (such as CO, H2S, SO2, NH3, NO2, PH3, CL2, etc.) with customizable sensors.
-
Simultaneous Detection: Can detect up to four gases simultaneously.
-
Alarm History: Stores up to 1000 alarm records for easy review.
-
Dual-Menu Interface: Supports both icon and text-based menu options.
-
Factory Reset Function: Restores to factory settings when needed.
-
Trend Graph Display: Shows the trend of gas concentrations over time.
-
Operational Indicators: Equipped with work status lights.
-
USB Type-C Charging: Convenient for fast and efficient recharging.
SPECIFICATION
| Gas |
NH3, NO2, PH3, CL2, EX
|
||||
| Detection Principle | Electrochemical, catalytic combustion (optional NDIR infrared sensor) | ||||
| Resolution | 0.01ppm or 0.001ppm (0 ~ 10 ppm); 0.01ppm (0 ~ 100 ppm), 0.1ppm (0 ~ 1000 ppm), 1ppm (0 ~ 10000 ppm or more) |
||||
| Measurement Units | %VOL, %LEL, ppm, mg/m3 | ||||
| Sensor service life | Electrochemical principle: 2 ~ 3 years; Oxygen gas: 2 years or 6 years can be selected; infrared principle: 5 ~ 10 years; catalytic combustion: 3 years. | ||||
| Accuracy | ≤±3% F.S (higher precision levels can be customized) | ||||
| Response time | T90≤30 seconds | Recovery time | ≤30 seconds | ||
| Operating Mode | Diffusion | ||||
| Power supply |
Built-in high-performance lithium battery, nominal voltage: 3.7VDC;
|
||||
| Alarm mode | It is possible to set as sound & light alarm, vibration alarm. | ||||
| Working Time | >16 hours (at room temperature without alarms); >20 hours for NDIR version | ||||
| Power Consumption | ≤0.7W | ||||
| Operating Pressure | 86kPa to 106kPa | ||||
| Protection level | IP65 | ||||
| Explosion-proof mark | Exia II CT4 Ga | ||||
| Exterior dimensions | 126×66×47mm (L×W×H) | ||||
| Weight | Approx. 189g | ||||
APPLICATION
MS104K Portable Four-in-One Gas Detector is ideal for precise monitoring of combustible gases, oxygen, and toxic gases in various industrial and safety sectors. Its versatility and high accuracy make it perfect for industries such as petrochemical, metallurgy, firefighting, gas distribution, environmental protection, pharmaceuticals, power generation, mining, and municipal engineering. The device helps ensure safety by detecting gas leaks, protecting workers' health, and preventing accidents in hazardous environments. With its durability, ease of use, and timely alarms, the MS104K provides reliable gas safety monitoring, effectively preventing accidents and ensuring the safety of life and property.
