Zetron PTM600-EG Portable Laser Methane Ethane Detector 100000 ppm CH4
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 제품 이름 | 제트론 PTM600-EG 레이저 메탄 및 에탄 검출기 | 감지 가스 | 메탄 (ch and) 및 에탄 c ₂H₆ |
|---|---|---|---|
| 측정 범위 | CH4 : 0–100,000 ppm; C2H6 : 0–30,000 ppm | 측정 방법 | 펌프 세포 유형 |
| 보호 수준 | IP66 | 최대 샘플링 유량 | 1.5L/분 |
| 폭발 방지 인증 | Exib IIB T4 GB | ||
| 강조하다 | Zetron PTM600-EG methane detector,laser methane detector with IP66,fast response methane ethane detector |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명

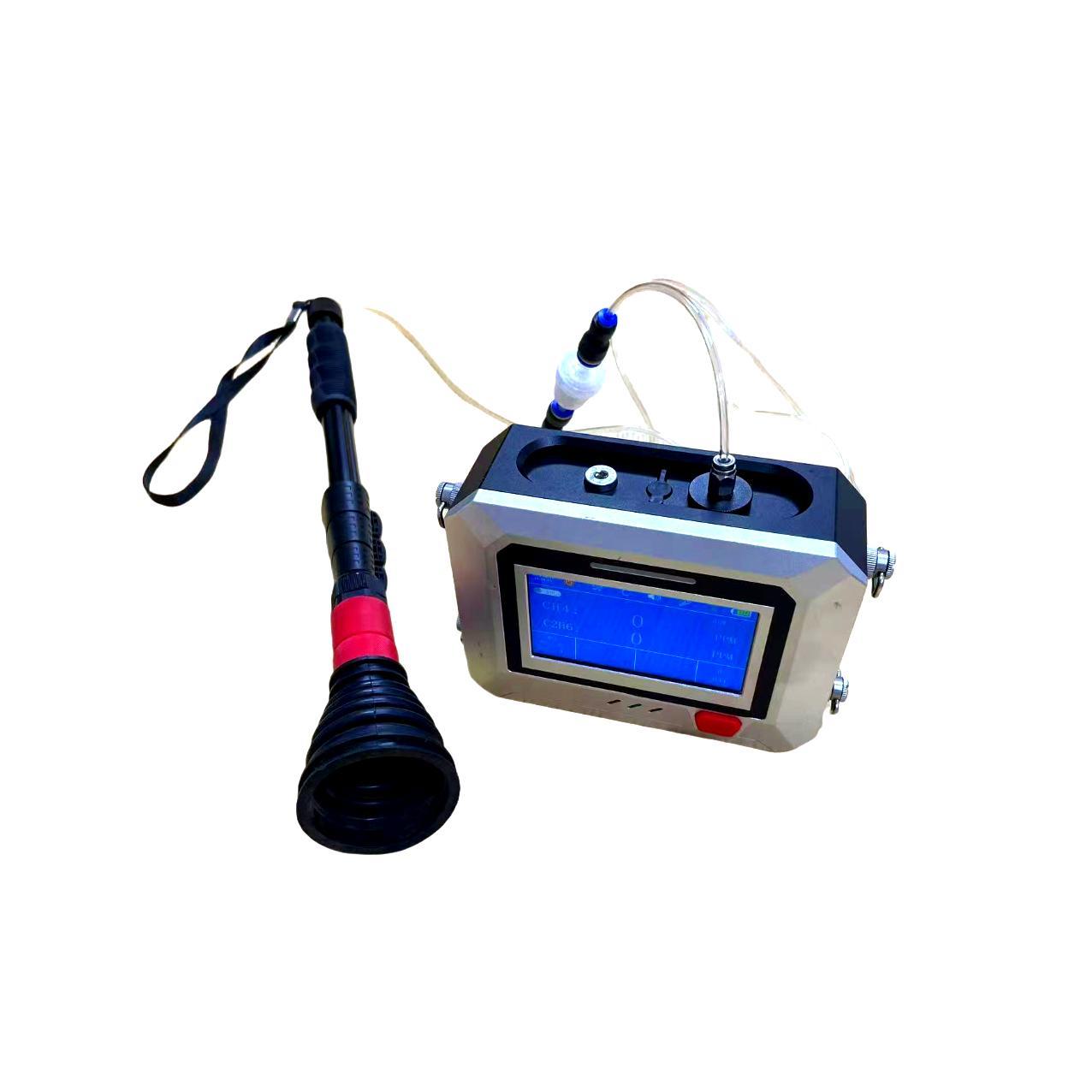

Zetron PTM600-EG TDLAS Portable Gas Analyzer for Natural Gas and Biogas Identification
Product Overview
The Zetron PTM600-EG Portable Laser Methane & Ethane Detector features cutting-edge Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, specifically designed for natural gas pipeline leak detection. Its unique capability to simultaneously monitor methane and ethane concentrations allows for precise differentiation between natural gas and biogas.
Key Features
- Intuitive and User-Friendly: One-button start with a humanized touchscreen interface for simple and fast operation.
- Multiple Range Modes: Provides full-range display in ppm, %LEL, and %VOL to cover diverse applications.
- Long Service Life: Designed for up to 10 years of use, offering high return on investment.
- Intrinsic Safety Design: Complies with stringent safety standards, suitable for potentially explosive environments.
Technical Specifications
| Attribute | Value |
|---|---|
| Model | PTM600-EG |
| Product Name | Zetron PTM600-EG Laser Methane and Ethane Detector |
| Detected Gas | CH₄ and C₂H₆ |
| Measuring range | CH4: 0-100,000 ppm; C2H6: 0-30,000 ppm |
| Measurement method | Pump-suction type |
| Operating time | Battery life ≥10 hours, standby ≥24 hours |
| Operating humidity | <90% RH (non-condensing) |
| Protection rating | IP66 |
| Dimensions | 170 mm (L) × 70 mm (W) × 130 mm (H) |
Applications
The PTM600-EG is an advanced portable solution for precise natural gas leak detection, combining high sensitivity with fast response. Its dual-gas detection capability enables simultaneous monitoring of methane and ethane, making it ideal for distinguishing natural gas from biogas.
Designed for diverse operational environments, it is perfectly suited for routine inspections of municipal pipelines, residential gas safety checks, and energy site monitoring. With robust IP66 protection and intrinsic safety features, the PTM600-EG performs reliably in challenging locations including long-distance transmission pipelines and special industrial environments.
