Zetron PTM600-EG Portable Methane Ethane Detector 100000ppm CH4 30000ppm C2H6
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 제품 이름 | 제트론 PTM600-EG 레이저 메탄 및 에탄 검출기 | 감지 가스 | 메탄 (ch and) 및 에탄 c ₂H₆ |
|---|---|---|---|
| 측정 범위 | CH4 : 0–100,000 ppm; C2H6 : 0–30,000 ppm | 샘플링 방법 | 펌핑 샘플링 |
| 최대 샘플링 유량 | 1.5L/분 | 폭발 방지 인증 | Exib IIB T4 GB |
| 작동 시간 | 10 시간 이상 작동 시간; 대기 시간 ≥24 시간 | 작동 습도 | <90% RH (비 콘센트) |
| 강조하다 | Zetron PTM600-EG methane detector,laser methane detector with IP66,fast response methane ethane detector |
||
제품 설명

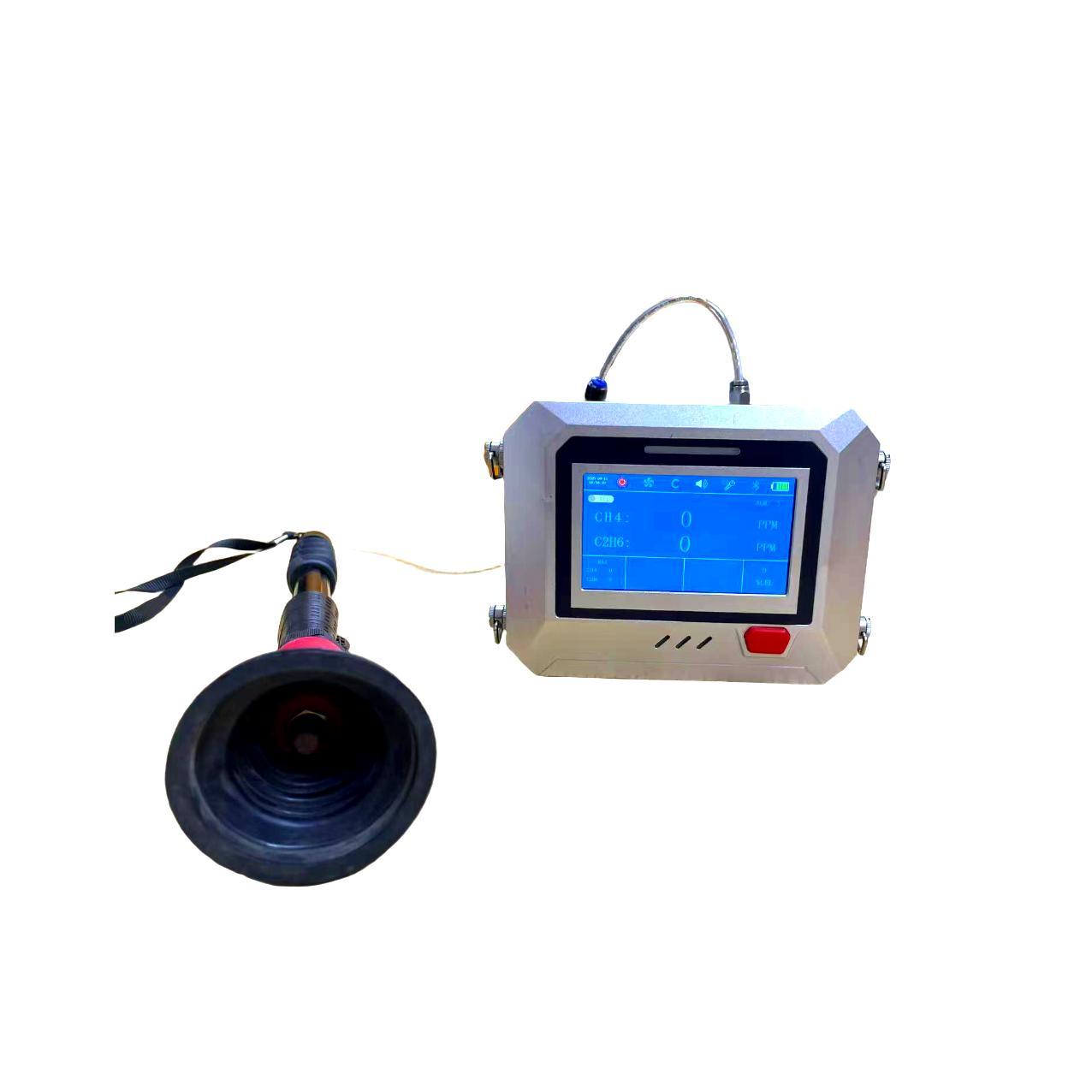

Zetron PTM600-EG Portable Methane Ethane Gas Detector with Fast 0.5s Response for Pipeline Patrol and Station Inspection
Product Overview
The Zetron PTM600-EG Portable Laser Methane and Ethane Detector adopts advanced TDLAS (Tunable Diode Laser Absorption Spectroscopy) technology and is specifically designed for natural gas pipeline leak detection. This device can simultaneously monitor methane and ethane concentrations, effectively distinguishing natural gas from biogas. Compared with traditional detection methods, laser technology provides the PTM600-EG with fast response, high sensitivity, and extended service life, making it a highly competitive high-tech product in today's market.
Key Features
- Dual-Gas Simultaneous Monitoring: Accurately measures methane and ethane concentrations.
- High Specificity: Detects only targeted reactions of methane and ethane to ensure accurate results.
- Intrinsic Safety Design: Complies with stringent safety standards, suitable for potentially explosive environments.
- Long Service Life: Designed for up to 10 years of use, offering high return on investment.
Applications
The PTM600-EG Portable Laser Methane and Ethane Detector is ideal for natural gas and petrochemical industries, environmental monitoring at landfills and biogas plants, urban gas network inspections, energy and utility station safety checks, industrial confined space monitoring, and long-distance pipeline surveillance. Its high specificity, fast response, and intrinsic safety design ensure reliable, real-time detection in both standard and challenging environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PTM600-EG |
| Product Name | Zetron PTM600-EG Laser Methane and Ethane Detector |
| Detected Gas | CH₄ and C₂H₆ |
| Measuring range | CH4: 0-100,000 ppm; C2H6: 0-30,000 ppm |
| Sampling Method | Pumped sampling |
| Operating time | Operating time ≥10 hours; standby time ≥24 hours |
| Operating humidity | <90% RH (non-condensing) |
| Protection rating | IP66 |
| Maximum Inlet Flow | 1.5 L/min |
