x제품 상세 정보
| 제품 이름 | 휴대용 먼지 분석기 | 모델 번호 | MS500 |
|---|---|---|---|
| 유형 | 레이저 센서 | 보호 수준 | IP66 |
| 무게 | 350g | 크기 | 180*78*33mm |
제품 설명

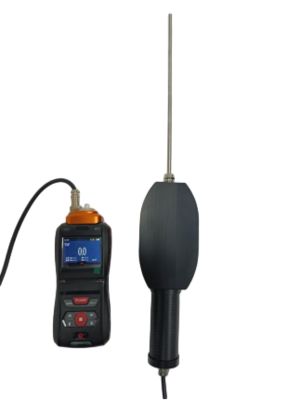

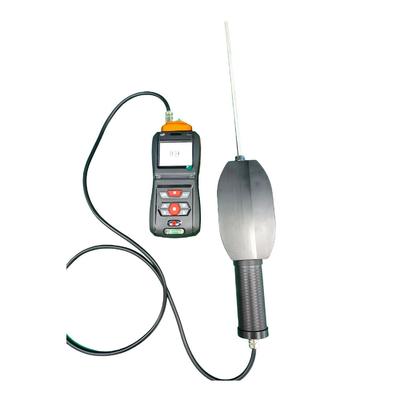

MS500 Portable Dust Detector
OVERVIEW
MMS500 is a multifunctional portable gas detection instrument designed for fast, accurate measurement of toxic and hazardous gases, as well as temperature and humidity. It can be used for detecting gas concentrations in pipelines, confined spaces, ambient air, gas leaks, or high-purity background gases such as ammonia or oxygen. With a detection capacity covering more than 500 gas types, it provides reliable safety monitoring in various industrial environments.
Equipped with a 2.5-inch high-definition color display, the MS500 provides clear real-time readings. The device supports single or multi-channel detection and displays real-time concentration curves.
FEATURES
- Built-in pump with a flow rate of 800 mL/min
- Supports LOW / HIGH / TWA / STEL alarm levels
- USB port for data transfer and charging
- Rechargeable and detachable lithium battery (3.6V, 5500mAh) with UN38.3 & MSDS certification
- 100,000 data storage capacity
- Multiple alarm types: sound, light, and vibration (95 dB @ 30 cm)
- USB port for data transfer and charging
PARAMETERS
| Parameter | Specification |
|---|---|
| Detected Gas | Particulate matter (TSP) |
| Detection Principle | Laser scattering method |
| Measurement Range | 0–300 mg/m³ (optional up to 1000 mg/m³) |
| Resolution | 0.1 mg/m³ |
| Accuracy | ≤ ±2% F.S |
| Response Time (T90) | < 20–30 seconds |
| Sensor Life | 2–5 years (depending on sensor type) |
| Flow Rate | 2.83 L/min |
| Operating Temperature | -40°C to +70°C |
| Operating Humidity | ≤ 95% RH (non-condensing) |
| Power Supply | 3.6V DC, 5500mAh rechargeable polymer battery |
| Alarm Modes | Sound, light, vibration |
| Data Storage | 100,000 records |
| Communication Interface | USB (standard), optional RS232 / IR / wireless |
| Protection Level | IP66 |
| Explosion-proof Type | ATEX, Ex ia II CT6 / Ex ib I Mb |
| Product Dimensions | 180 × 78 × 33 mm (L × W × H) |
| Weight | 350 g |
| Anti-drop Height | ≥ 8 meters |
| Warranty | 1 year |
APPLICATION
MS500 Portable Multi-Gas Detector is widely used in industries such as petrochemical, metallurgy, environmental protection, firefighting, power generation, pharmaceutical, municipal engineering, and laboratory research. It is ideal for on-site detection of toxic and hazardous gases, dust particles, and oxygen levels in confined spaces, pipelines, and ambient environments. With its built-in pump, high-precision laser sensor, and ATEX explosion-proof design, the MS500 provides reliable real-time monitoring and early warning to ensure workplace safety and prevent gas leakage accidents.
