Zetron PTM600 Flue Gas Analyzer – Portable Multi-Gas Detection for Industrial, Marine & Boiler Emissions, High-Precision Electrochemical & IR Sensors
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 제품 이름 | PTM600 휴대용 연소가스 분석기 | 유형 | 휴대용 다중 가스 분석기, 내장형 펌프 |
|---|---|---|---|
| 기능 | 가스 순도 측정 | 센서 유형 | 적외선 센서 수입 |
| 가스 감지 | 가연성 가스/H2S/CO/O2/H2S/H2 | 맞춤형 지원 | OEM, ODM, OBM |
| 무게 | 2.5kg | 외부 치수 | 230×210×120mm(L×H×W) |
제품 설명

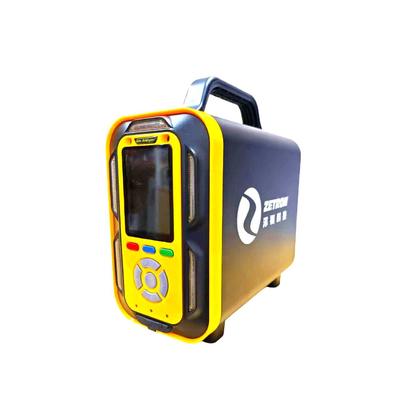

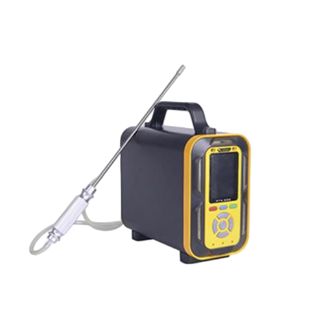

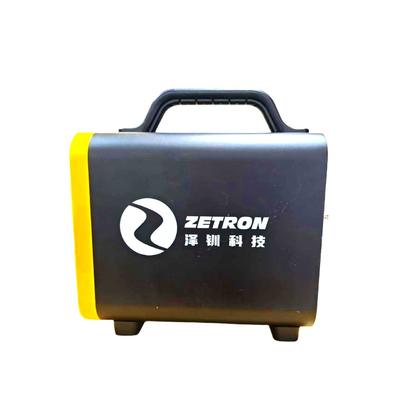

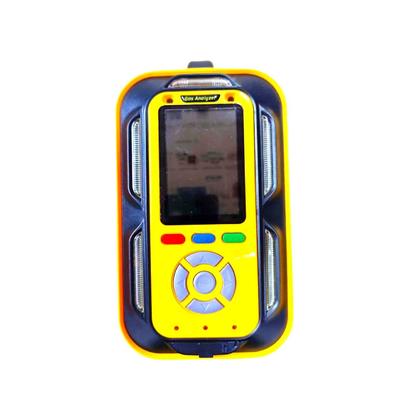

Zetron PTM600 Portable Flue Gas Analyzer
OVERVIEW
PTM600 Flue Gas Analyzer is a portable, all-in-one professional measurement system designed for industrial and marine emission monitoring. It supports simultaneous detection of up to 18 types of gases, including O₂, CO, CO₂, NOx, SO₂, H₂S, and flammable gases, using high-precision electrochemical and infrared sensors. Equipped with a built-in pump, filter, and electric cooler, it ensures reliable measurements in industrial furnaces, boilers, engines, turbines, and ship exhaust systems. The analyzer features a user-friendly interface, 3.5-inch color screen, IP66 protection, explosion-proof design (Exia II CT6), and up to 12 hours of battery life, making it ideal for on-site flue gas analysis, environmental compliance, and combustion efficiency optimization.
FEATURES & BENEFITS
-
Fast and Efficient Detection: Rapid, accurate measurement of multi-gases, temperature, and humidity.
-
High Performance: High measurement precision and stable professional-grade analysis.
-
Ease of Use: Simple operation, portable, suitable for indoor, field, and industrial environments.
-
User-Friendly Interface: Rich human-machine interface with customizable functions.
-
Data Management: Large storage capacity (up to 100,000 entries), SD card optional.
-
Versatility: Multiple optional functions to meet personalized needs.
-
Power: Built-in lithium battery, up to 12 hours continuous work.
-
Safety: Intrinsically safe type, explosion-proof Exia II CT6.
-
Protection: IP66 rating.
-
Optional High Temperature Probes:
HSP4: 400 °C, 400 mm
HSP8: 800 °C, 800 mm
HSP12: 1000 °C, 1200 mm
THSP1: 1300 °C, 1600 mm
SPECIFICATION
| Product Name | PTM600 Flue Gas Analyzer |
| Gases Detected | 1-6 types (expandable to 18). Includes O2, CO, CO2, NO, NO2, SO2, H2S, flammable/explosive gases, TVOC, etc. |
| Detection Principle | Electrochemical (O2, CO, NO, NO2, SO2, H2S), Infrared (CO2, CH4) |
| Detection Range & Resolution |
O2: 0–25%VOL, 0.01% resolution (Electrochemical) CO: 0–500ppm / 0–5000ppm, 0.1ppm/1ppm resolution (Electrochemical) CO (IR): 0–10000ppm, 1ppm resolution CO2: 0–5000ppm, 0.01% resolution (IR) NO: 0–4000ppm / 0–10000ppm, 1ppm resolution SO2: 0–500ppm / 0–1000ppm, 0.1ppm resolution H2S: 0–1000ppm, 1ppm resolution CnHm: 0–4000ppm, 1ppm resolution (IR) |
|
Accuracy |
≤±2% F.S. (higher precision customizable) |
| Working Environment | Temperature: -40 °C to +70 °C Humidity: 10–95% RH |
| Power Supply | 3.6V DC, 10000mA rechargeable polymer battery |
| Display | 3.5-inch high-definition color screen |
| Detection Mode | Built-in pump suction, 800 ml/min flow rate |
| Alarm Mode | Sound, light, vibration, manual reset |
| Protection Level | IP66 |
| Explosion-proof Type | Intrinsically safe, Exia II CT6 |
| Dimensions | 230 × 210 × 120 mm (L×H×W) |
| Weight | 2.5 kg |
|
Warranty time |
One year |
APPLICATION
PTM600 Flue Gas Analyzer is widely used in industrial and marine environments where monitoring and analysis of combustion and emission gases are critical. It is ideal for boilers, burners, engines, turbines, generators, kilns, dryers, heaters, and ovens, providing precise data for combustion efficiency optimization, environmental compliance, and regulatory reporting. Its portability, multi-gas detection capability, and robust design make it suitable for field inspections, industrial process control, and marine emission monitoring, ensuring accurate and reliable measurements in demanding conditions.
