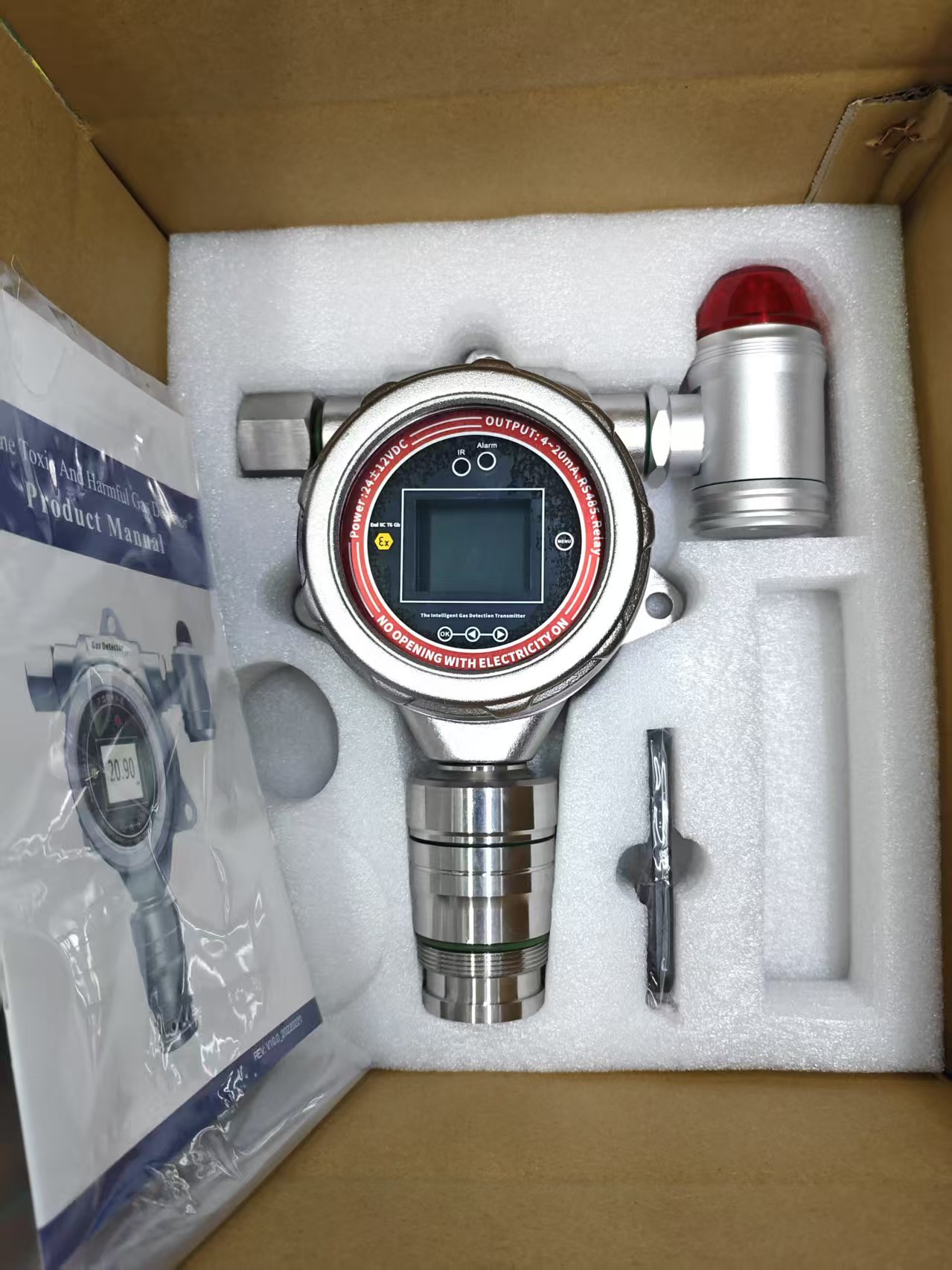

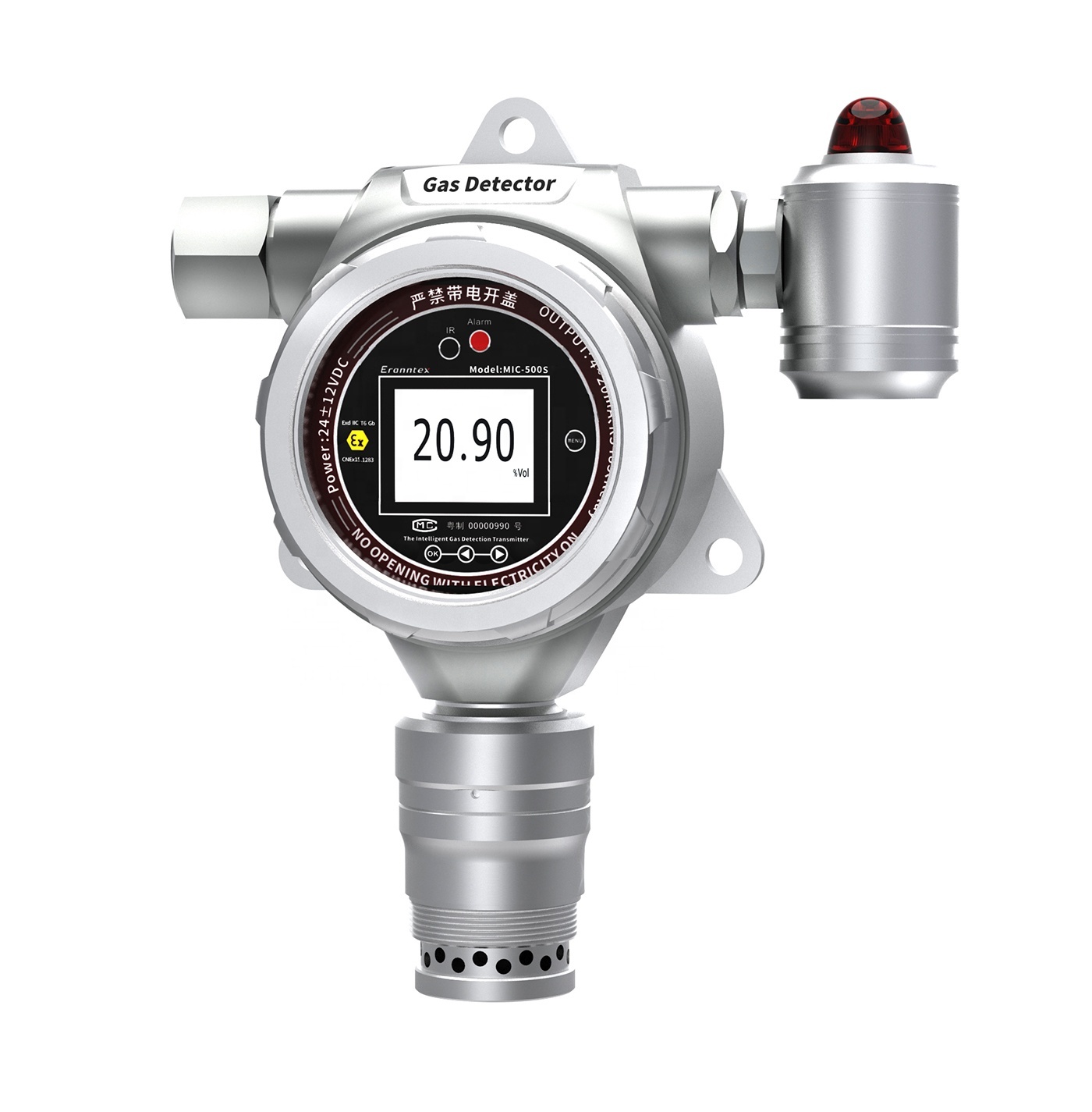

MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Product name | MIC500S | Function | measure gas leakage and concentration |
|---|---|---|---|
| Detecting Gas | Combustible Gas/H2S/CO/O2/H2S/H2/CH4 | Connection | 4-20mA, RS485, Hart, Relay |
| Customized support | OEM, ODM, OBM | Weight | 2.5kg |
| Class Of Protection | IP65/IP66 | Humidity | 0-95%RH (no dew) |
| Detection Mode | Diffused/Pipeline/Pump suction |
제품 설명
MIC500S LPG Gas Leakage Detector Methane Hydrogcarbon Industrial Gas Leak Detector
OVERVIEW
SPECIFICATION
| Gas | Toxic& Harmful Gas more than 500 types | Range | 0-50000PPM;
0-100%LEL ;
0-100%Vol.
other ranges can be customized
|
| Size | 210×170×85mm (L×H×W) | Weight | 1.8 Kg |
| Installation method | Pipeline Type
Wall Mounting Type
|
Display | 1.7-inch high-definition color screen |
| Environment | Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH (regular)
|
Approvals | IP65; Exd Ⅱ CT6 |
| Accessories | Manual, qualification certificate, warranty card, outer packaging box | ||
| Working Voltage | 12 ~ 30VDC direct current, the standard power supply for single equipment is 24V, DC stabilized voltage switching power supply of 1A or greater than 1A | ||
| Working Method | Fixed type installation, online detection, diffusion type measurement; and it is possible to select the measurement of pipeline type, flow-through type, and pump-suction type. | ||
| Connecting Cable | Adopted 4 ~ 20mA three-core shielding cable, adopted four-core for RS485, when the distance exceeded 100 meters, the single wire diameter ≥1.5mm; and the shielding layer will be connected to the earth. | ||
| Optional items | Alarms; Wireless Transmission; Pretreatment System; SD Card;
Temperature and Humidity Measurement;
Accessory for connection with computer for monitoring.
|
||
| Installation Type Accessories
(Optional configuration)
|
Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe), stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...), rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m), vacuum pump (sampling distance is 40 m),
24V switching power supply, pressure reducing valve, flow meters
|
||
APPLICATION
